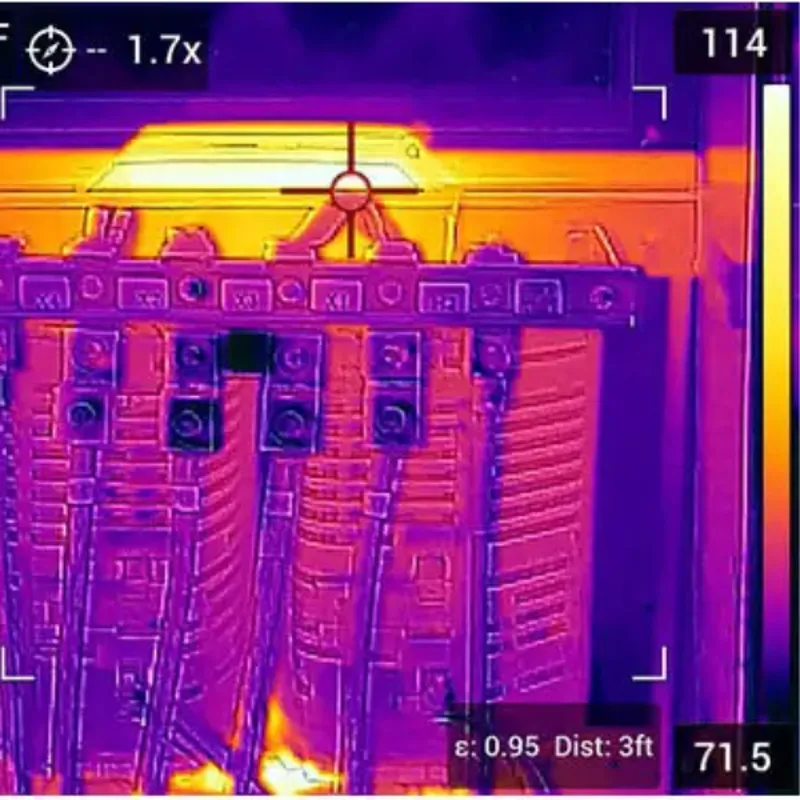

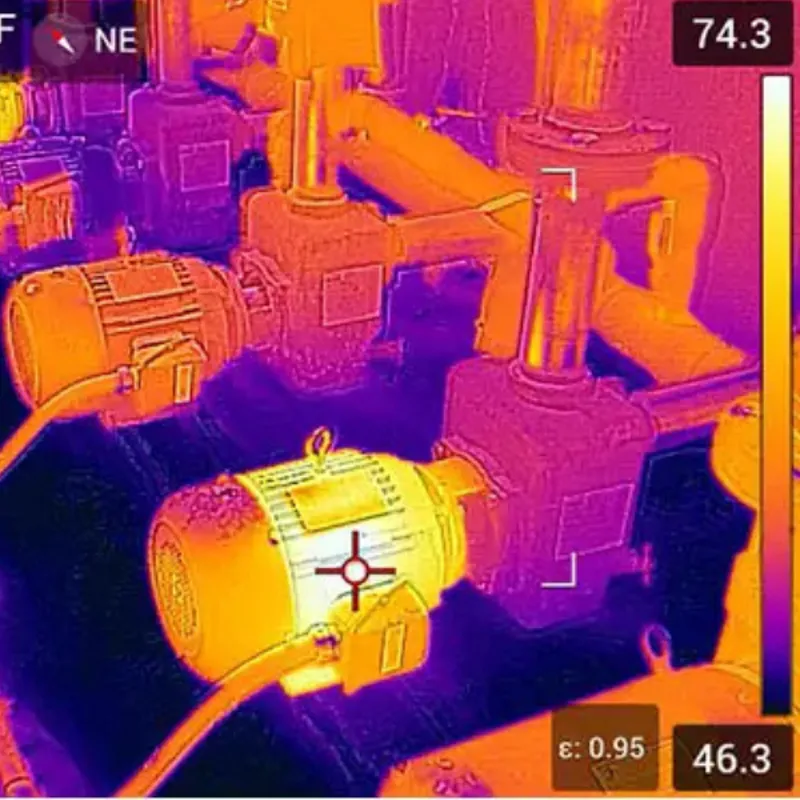

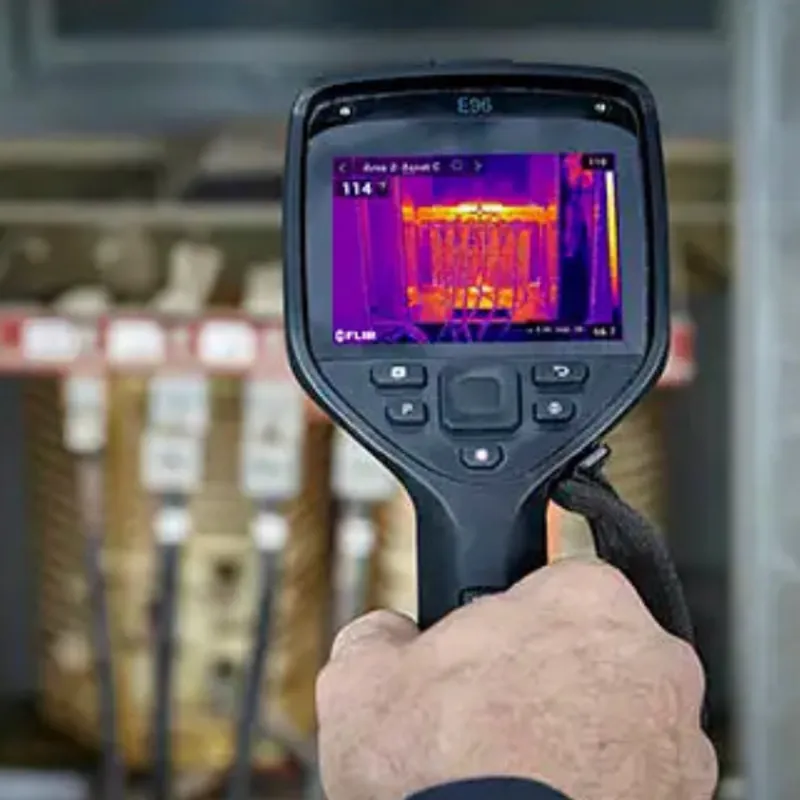

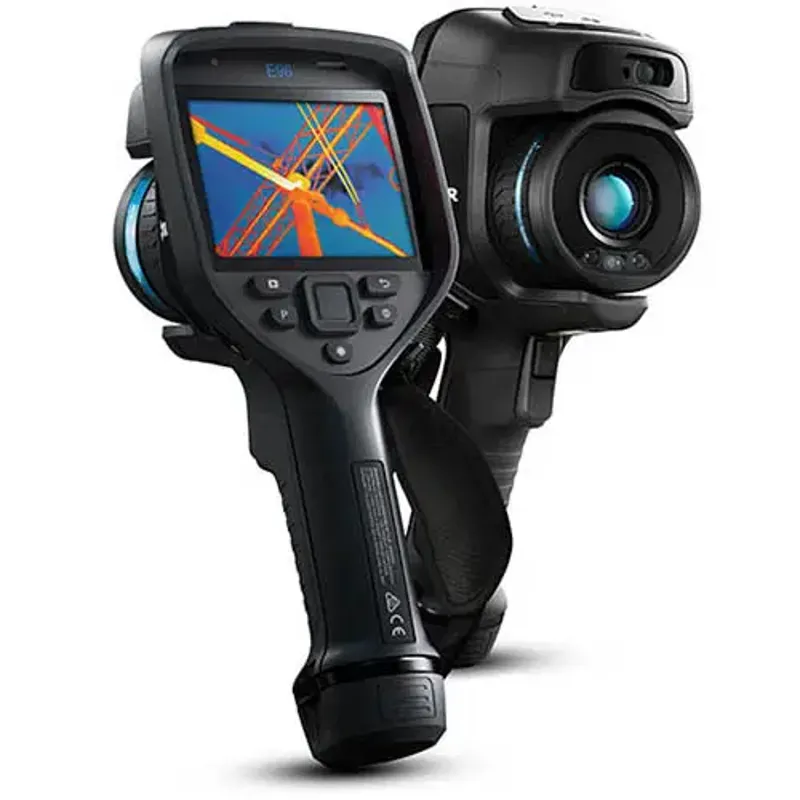

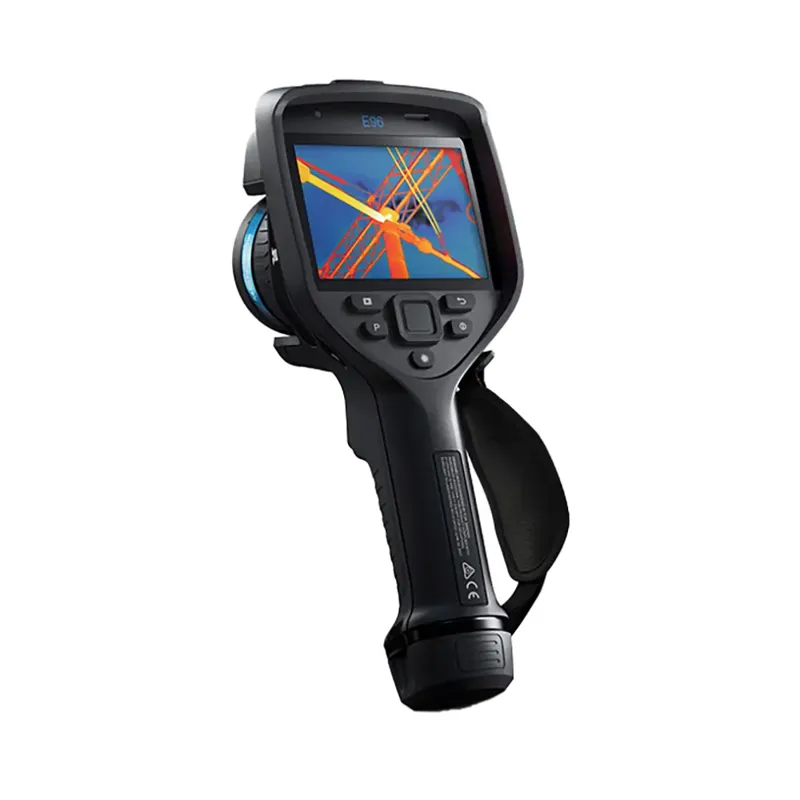

The Teledyne FLIR E96-24-42 Advanced Thermal Imaging Camera delivers exceptional image clarity and precise thermal measurement with its 640 × 480 detector resolution. Designed for high-voltage and hazardous target inspections, this camera provides unmatched efficiency in identifying electrical, mechanical, and building issues. The ergonomic pistol-grip design and vibrant 4-inch LCD touchscreen simplify operation even in challenging environments.

With integrated MSX and UltraMax technologies, the E96 enhances image detail and spatial orientation, enabling professionals to pinpoint and analyze issues with superior accuracy. The camera comes equipped with 24° and 42° AutoCal lenses that are automatically recognized and calibrated upon installation, allowing seamless transitions between close and wide-angle views without service interruptions. Combined with a laser distance meter and voice annotations, the E96 is an all-in-one solution for thorough thermal analysis.

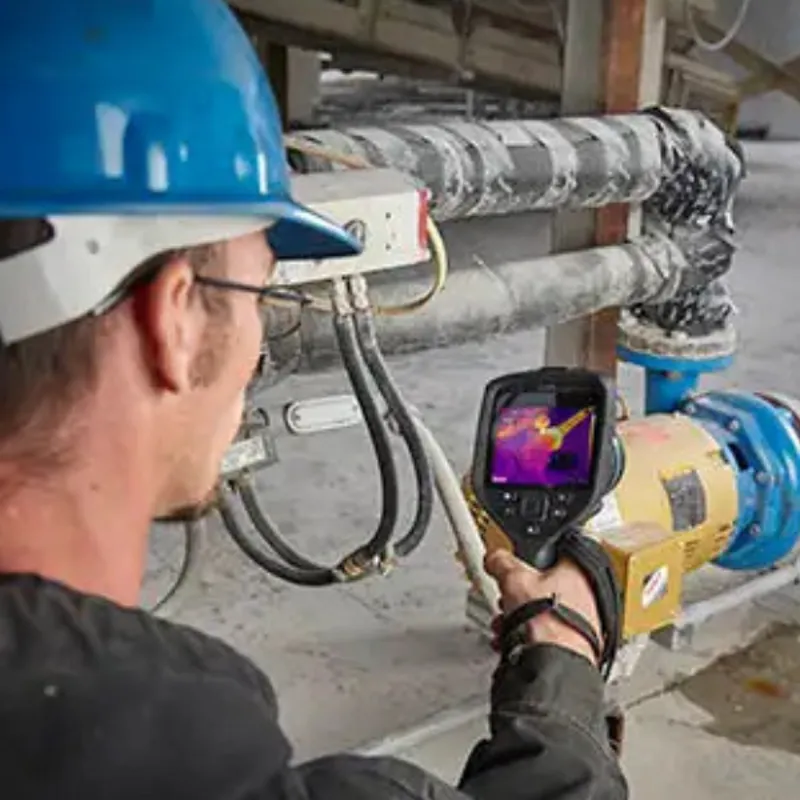

Included software like Teledyne FLIR Thermal Studio Pro and Inspection Route further enhances workflow efficiency, from organized image capture to professional report generation. Ideal for building diagnostics, electrical maintenance, and industrial inspections, the FLIR E96 is a robust, field-ready thermal solution for expert-level diagnostics.

What's Included:

• Teledyne FLIR E96 Thermal Imaging Camera
• 24° 17 mm Standard Lens
• 42° 10 mm Wide-Angle Lens
• Rechargeable Li-ion Battery
• Removable SD Storage Card
• USB 2.0 and USB Type-C DisplayPort Cable
• FLIR Thermal Studio Pro Software (with Inspection Route Plugin)

Features

Dual Field-of-View AutoCal Lenses
Includes 24° and 42° lenses for close and wide-angle views with automatic lens recognition and calibration.

High Thermal Resolution with Enhancements
640 × 480 thermal resolution plus UltraMax and MSX technologies offer detailed, crisp imaging for better diagnostics.

Streamlined Thermal Reporting
Thermal Studio Pro software and Inspection Route plugin enable fast, organized report generation.

Versatile Communication and Storage
Supports USB, Bluetooth, Wi-Fi, and removable SD storage for easy file transfer and sharing.

Voice and Text Annotation
Capture 60-second voice notes or type annotations to complement thermal images and enhance documentation.

Advanced Display and Controls
Features a 4-inch touchscreen LCD with auto-rotation, programmable buttons, and intuitive interface.

Built-In Laser Distance Meter
Ensures sharp focus and accurate measurement with one-touch laser assistance.

Wide Operating Range and Durability
IP54 rated, withstands shock, vibration, and operates in temperatures from -15°C to 50°C.

What's Included

Included with Your Purchase:

• Teledyne FLIR E96 Thermal Imaging Camera
• 24° 17 mm Standard Lens
• 42° 10 mm Wide-Angle Lens
• Rechargeable Li-ion Battery
• Removable SD Storage Card
• USB 2.0 and USB Type-C DisplayPort Cable
• FLIR Thermal Studio Pro Software (with Inspection Route Plugin)

Specifications

• IR Resolution: 640 x 480 pixels
• Thermal Sensitivity (NETD): <40 mK at 30°C
• Image Frequency: 30 Hz
• Display: 4-inch, 640 x 480 LCD touchscreen
• Lenses: 24° 17 mm and 42° 10 mm AutoCal
• Focus Options: Manual, One-shot LDM/contrast, Continuous LDM
• Zoom: 1–8x continuous digital
• Video Output: DisplayPort over USB Type-C
• File Format: Standard JPEG with radiometric data
• Storage: Removable SD card
• Battery Life: Over 2.5 hours
• Operating Temperature: -15 to 50°C
• Storage Temperature: -40 to 70°C
• Shock/Vibration Rating: 25g / 2g
• Enclosure Rating: IP54
• Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
• Measurement Range: -20 to 1500°C across 3 ranges
• Accuracy: ±2°C or ±2%
• Communication: USB 2.0, Bluetooth, Wi-Fi

FAQ

Q: What is the purpose of having two lenses?
A: The 24° lens offers a standard field of view for safe distance inspections, while the 42° wide-angle lens is ideal for large surface areas like roofs and walls.

Q: Can I add annotations to thermal images?
A: Yes, the E96 supports 60-second voice recordings and text annotations via the touchscreen.

Q: Does this camera support streaming?
A: Yes, it offers radiometric streaming over UVC and non-radiometric streaming over Wi-Fi or UVC.

Q: What is UltraMax and how does it help?
A: UltraMax combines multiple frames to enhance image resolution and detail, improving analysis and reducing noise.

Q: How is this camera calibrated when changing lenses?
A: The AutoCal lenses are automatically detected and calibrated by the camera, eliminating manual setup.
