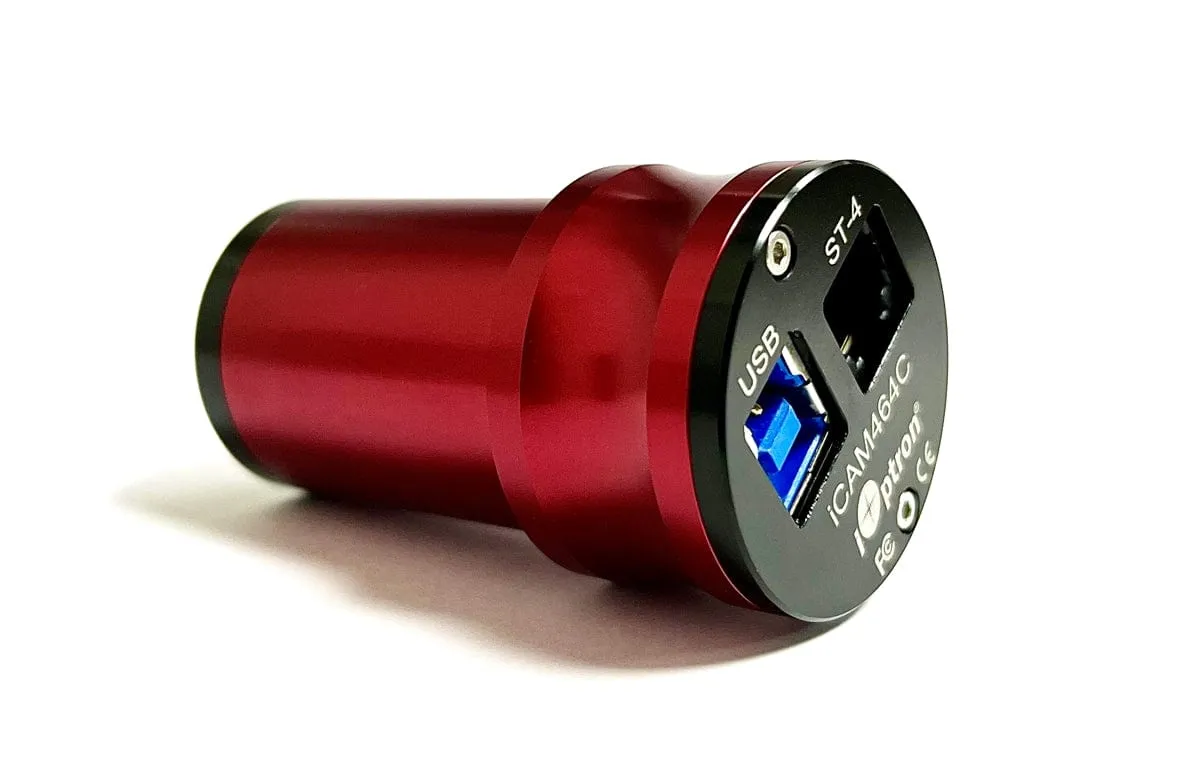

iCAM464C camera uses a Sony IMX464 color sensor. The imaging area is 1/1.8", with 2.9um pixel size, 4.2MP resolution (2712*1538) and diagonal of 9mm.
iCAM464C camera has a very high sensitivity. It is an ideal camera for planetary imaging. The camera has a very low readout noise. The testing results indicated that the readout noise is as low as 0.75e at a gain of 350 and around 0.71e at a gain of 400. The camera has a unique DPS (Dead Pixel Suppression) technology to eliminate the any abnormal/dead pixel by analyzing camera dark frames. The camera has a unique HCG mode, which will automatically turn on when the camera gain setting is ≥ 80. The HCG mode can greatly reduce the readout noise and retain the same high dynamic range as it at low gain. Due to its unique QE response, the sensitivity reaches the peak at 800-850nm. An IR850 or CH4 filter can be used with the camera for infrared imaging.
When the camera is connected to the USB3.0 interface and full-resolution preview is used, it can reach 93 fps in RAW8 mode (10bit ADC). During image recording, the actual recording speed is affected by the hard drive writing speed. It is recommended to use a high-quality solid state drive to record data to realize the full benefit of the USB3.0 data speed. The ST-4 guiding port allows one to connect the camera to a mount GUIDE port for ST-4 autoguiding.
| | Manual
Camera and ASCOM driver:
| |
Specifications
| Image Sensor | Sony IMX464 CMOS (color) |
| Sensor Size | 1/1.8" (5.6X3.2mm) |
| Max. Resolution | 2712 X 1538 (4.2MP) |
| Pixel Size | 2.9 µm |
| Frame Rate | 93 fps (at 10 bit, max. resolution) |
| Shutter | Rolling shutter |
| Exposure Range | 32µs ~2000s |
| Readout Noise | 2.9e~0.7e |
| QE | ~80% |
| Full Well | 12K e |
| ADC | 12 bit |
| HCG Mode | Supported |
| Optical Window | AR coated glass |
| Data Port | USB3.0 |
| Guide Port | ST-4 compatible |
| Telescope Adapter | 1.25" |
| Warranty | One year limited |
