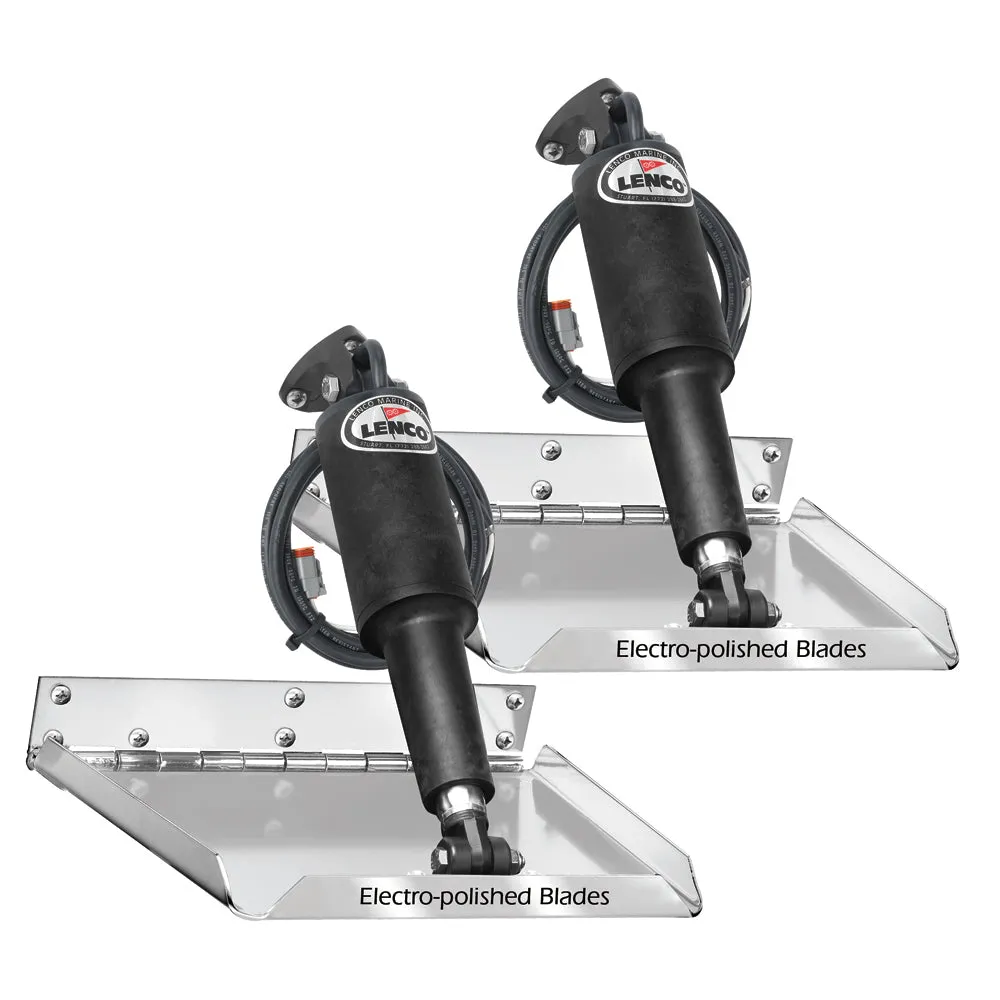

9" x 9" Standard Performance Trim Tab Kit w/o Switch Kit- 12V

Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades

Kit Contents:

• 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
• 2 each of #15054-001 actuators with 6' lead and Deutsch plugs
• 2 each of #30133-103 20' actuator extension wiring harnesses
• 2 each of #15085-001 (#116) upper mounting bracket with gland seal
• 2 each of #50014-001 (#119) lower mounting bracket
• 1 each of the Lenco owner’s / installation manual
• All necessary stainless steel mounting hardware

Specifications:

• Suggested Boat Length: 13' to 20'
• Length of Tab: 9"
• Width of Tab: 9"
• Minimum Transom Height: 13.5"
• Blades: 12 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt
