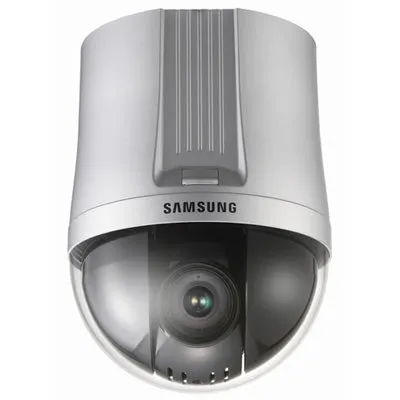

| Brand | Samsung | |
|---|---|---|
| Model Code | SNP-3750 | |
| Series | POLis range | |
| Chip Inch Size | 1/4 | |
| Color Type | Color / Monochrome | |
| Resolution TVL | 680 | |
| Dome Type | Continuous Rotation | |
| Sensitivity lux | 0.002 | |
| Indoor/Outdoor | Indoor/Outdoor | |
| Electrical Specifications | Voltage: 24 V AC | |
| Focal length | 3.5 ~ 129.5 | |
| Rotation Angleso | 360 pan, -5 ~ 195 tilt | |
| Compression | JPEG, MPEG-4 | |
| Back Light Compensation | Yes | |
| Auto Gain Control | Yes | |
| White Balance | Yes | |
| Electronic Shutter range | 1/60 ~ 1/120,000 | |
| S/ N (Signal/ Noise) Ratio dB | 52 | |
| Signal Mode | PAL, NTSC | |
| Network Properties | Interface: RJ-45 10/100 Base-T Network Protocols: RTP/UDP, RTP/Multicast, RTSP, TCP/IP, DHCP, DNS | |
| Electrical Specifications | Power Consumption: 16 W | |
| Physical Specifications | Dimensions mm: 155 x 243.4 Weight g: 2,000 | |
| Environmental Specifications | Operating Temp oC: -10 ~ 50 Operating Humidity %: 20 ~ 80 Protection: IP66 | |
